TECHFLOW is one of the pioneer manufacturer of Dense Phase Conveying Systems. They are also known as Pneumatic Transporters, material transporter, Foundry Sand Transporter. This system is used to convey the material like Bentonite conveying from source to multiple or single destination with the help of compressed air. These bentonite conveying system employ method of method employ higher pressure with lesser air volume per kilogram of weight conveyed compared to LEAN phase system. Solids in powder form has a greater fluidisability hence the same are conveyed with this type. The pipeline usually has a denser solid component flowing in air, hence termed DENSE PHASE.

Dense Phase Pneumatic Conveying Systems are further catagorised as PLUG TYPE & CONTINUOUS TYPE, as per the solids movement style in the pipe.

Medium to high pressures are required for this type of conveying, hence Dry compressed air is employed as prime moving force.

Conveying velocities are designed relatively lower & under 5 mtrs/sec. However starting pressures sometimes exceed 3 to 4 Bar designed commensurate with the distances to be conveyed & system resistance. The pipe diameters are designed as per the throughput requirement & however works out relatively smaller.

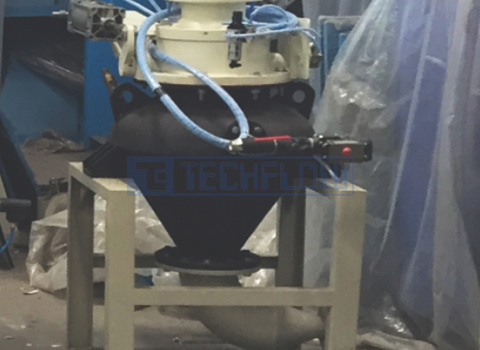

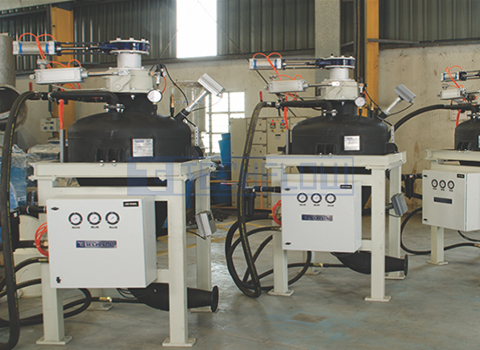

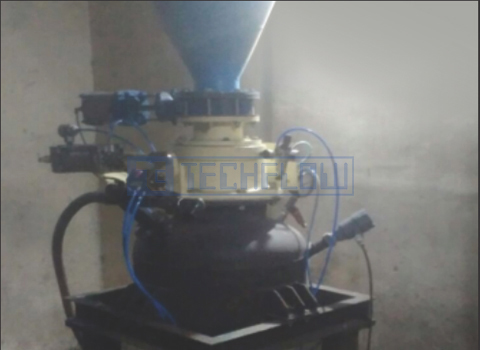

A pressure vessel is kept to receive & transport the powder material. A terminal pulse-jet filter is kept to vent out the conveying air. A set of compressed air valve & sensor system is usually come assembled on the vessel. A primary storage feed hopper is kept above the Vessel with an isolating Dome Valve in between. An electrical control panel with PLC programme is provided to operate the cycles of FILLING & CONVEYING

Following is the animation of the working principal of the system.
